SOLOdrive

LED dimming made beautiful
SOLOdrive offers industry-best Natural Dimming to 0% - LED dimming made beautiful! Dimming behaviour you are used to from incandescent lighting. With any dimmer, in any application, over DALI or 0-10V. Thanks to LEDcode, you get to choose a dimming curve type for your application, set a minimum dimming level and very precise LED currents and much more. Symbiosis uses LEDcode to connect sensors, easily adding value to your application.

Length (L) 160 mm / 6.3 in
Width (W) 41.5 mm / 1.63 in
Height (H) 30.5 mm / 1.2 in

Length (L) 160 mm / 6.3 in
Width (W) 41.5 mm / 1.63 in
Height (H) 30.5 mm / 1.2 in

SOLOdrive 240/A | 20 Watt | DALI

SOLOdrive 240/A delivers 20W and is DALI-2 certified. As all SOLOdrives, the 240/A smoothly dims all the way down to dark. The 20W /A independent LED driver with cable retention is perfect for downlight applications in Europe where the LED driver needs to fit through a 50mm diameter hole in the ceiling into a plenum with a 110mm height between functional and decorative ceiling.

Features

• Hybrid HydraDrive: provides the smoothest flicker-free high-performance dimming to zero for every fixture

• LEDcode2: connects to integrated digital accessories, supports location-based IoT applications and enables wired and wireless lighting control through LEDcode peripheral devices

• NTC interface for robust thermal management

Benefits

• Increase performance and capability of any LED fixture

• Reduce inventory and decrease lead times with configurable drivers

• Short lead times, designed to meet the most aggressive timelines

• Trusted brand with proven track record of performance and reliability

Certifications

• CE Declaration

• EN 61347-1/-2-13, EN 62384, EN 55015, EN 55022, EN 61000-3-2, EN 61547

• IEC 62386-101 Ed. 2.0, IEC 62386-102 Ed. 2.0, IEC 62386-207 Ed. 1

• ENEC and EL certificate

• RoHS2 Declaration of conformity

Downloads

SOLOdrive 241/A | 20 Watt | 0-10V

SOLOdrive 241/A delivers 20W and is 0-10V compatible. As all SOLOdrives, the 241/A smoothly dims all the way down to dark.

The 20W /A independent LED driver with cable retention is perfect for downlight applications in Europe where the LED driver needs to fit through a 50mm diameter hole in the ceiling into a plenum with a 110mm height between functional and decorative ceiling.

Features

• Hybrid HydraDrive: provides the smoothest flicker-free high-performance dimming to zero for every fixture

• LEDcode technology: configurable design to work with most constant current LED modules and arrays, while providing a connection point to integrated peripheral controls

• NTC interface for robust thermal management

Benefits

• Increase performance and capability of any LED fixture

• Reduce inventory and decrease lead times with configurable drivers

• Short lead times, designed to meet the most aggressive timelines

• Trusted brand with proven track record of performance and reliability

• Wide application area thanks to fully configurable dimming curve

Certifications

• CE Declaration

• EN 61347-1/-2-13, EN 62384, EN 55015, EN 55022, EN 61000-3-2, EN 61547

• ENEC and EL certificate

• RoHS2 Declaration of conformity

Downloads

Length (L) 210 mm / 8.27 in
Width (W) 40.4 mm / 1.59 in
Height (H) 33.5 mm / 1.32 in

SOLOdrive 360/A | 30 Watt | DALI

SOLOdrive 360/A delivers 30W and is DALI-2 certified. The end caps function as wire restraints and make the driver perfectly suited for independent installations. As all SOLOdrives, the 360/A smoothly dims all the way down to dark.

Features

• Hybrid HydraDrive: provides the smoothest flicker-free high-performance dimming to dark for every fixture

• LEDcode2: connects to integrated digital accessories, supports location-based IoT applications and enables wired and wireless lighting control  through LEDcode peripheral devices

• NTC interface for robust thermal management

Benefits

• Industry-best dimming performance for your fixture/application

• Wide application area thanks to fully configurable dimming curve

Certifications

• EN 61347-1/-2-13, EN 62384, EN 55015,EN 55022, EN 61000-3-2, EN 61547

• IEC 62386-101 Ed. 2.0, IEC 62386-102 Ed. 2.0, IEC 62386-207 Ed. 1

• UL: Recognized Component (E333135), according to UL1310 and UL8750. US/Canada: Class 2 output.

• ENEC and EL certificate

• RCM certificate

• RoHS2 Declaration of conformity

Length (L) 210 mm / 8.27 in
Width (W) 40.4 mm / 1.59 in
Height (H) 33.5 mm / 1.32 in

Length (L) 130 mm / 5.12 in
Width (W) 72 mm / 2.83 in
Height (H) 28 mm / 1.1 in

Length (L) 152.5 mm / 6 in
Width (W) 76.2 mm / 3 in
Height (H) 30.1 mm / 1.18 in

Length (L) 152.5 mm / 6 in
Width (W) 76.2 mm / 3 in
Height (H) 30.1 mm / 1.18 in

SOLOdrive 361/A | 30 Watt | 0-10V

SOLOdrive 361/A delivers 30W and is 0-10V compatible. The end caps function as wire restraints and make the driver perfectly suited for independent installations. As all SOLOdrives, the 361/A smoothly dims all the way down to dark.

Features

• Hybrid HydraDrive: provides the smoothest flicker-free high-performance dimming to dark for every fixture

• LEDcode technology: configurable design to work with most constant current LED modules and arrays, while providing a connection point to integrated peripheral controls

• NTC interface for robust thermal management

Benefits

• Industry-best dimming performance for your fixture/application

Certifications

• EN 61347-1/-2-13, EN 62384, EN 55015,EN 55022, EN 61000-3-2, EN 61547, EN 60929 Annex E

• UL: Recognized Component (E333135), according to UL1310 and UL8750. US/Canada: Class 2 output.

• ENEC and EL certificate

• RCM certificate

• RoHS2 Declaration of conformity

Downloads

SOLOdrive 361/S | 30 Watt | 0-10V

SOLOdrive 361/S delivers 30W and is 0-10V compatible. As all SOLOdrives, the 361/S smoothly dims all the way down to dark.

You can order the SOLOdrive 361/S with an ENERGY STAR and CA Title 24-compliant start up time.

Features

• Hybrid HydraDrive: provides the smoothest flicker-free high-performance dimming to dark for every fixture

• LEDcode technology: configurable design to work with most constant current LED modules and arrays, while providing a connection point to integrated peripheral controls

• ENERGY STAR and CA Title 24 start-up performance

• NTC interface for robust thermal management

Benefits

• Industry-best dimming performance for your fixture/application

Certifications

• EN 61347-1/-2-13, EN 62384, EN 55015, EN 55022, EN 61000-3-2, EN 61547, EN 60929 Annex E

• UL: Recognized Component (E333135), according to UL1310 and UL8750. US/Canada: Class 2 output. Type TL LED driver.

• ENEC and EL certificate

• RCM certificate

• RoHS2 Declaration of conformity

Downloads

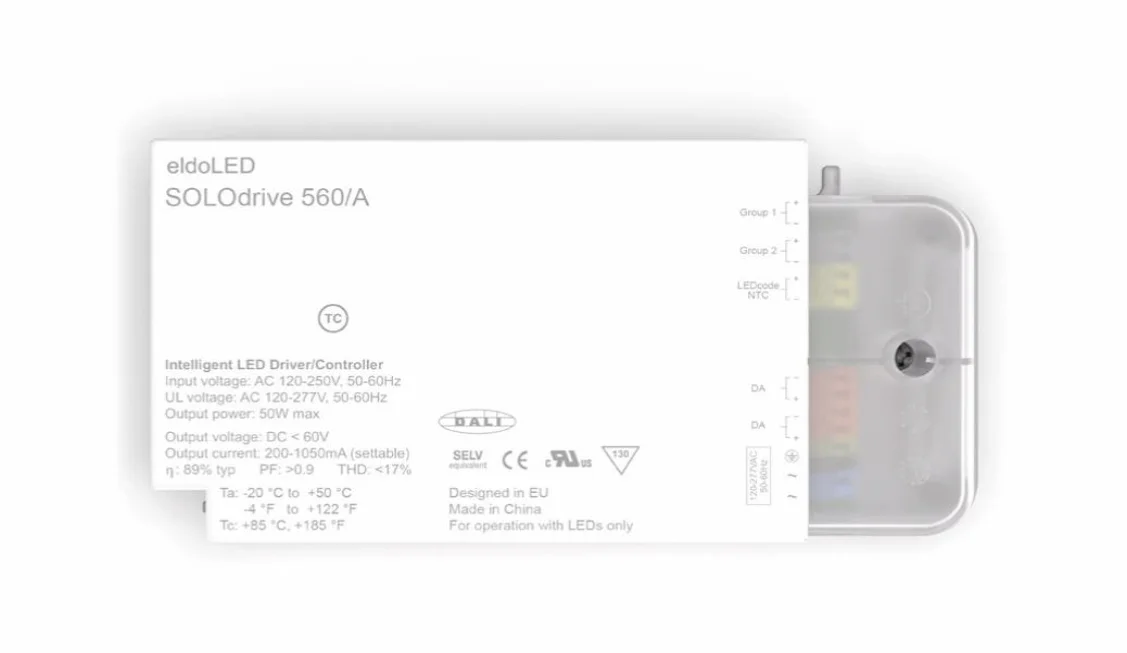

SOLOdrive 560A | 50 Watt | DALI

SOLOdrive 560/A delivers 50W and is DALI-2 certified. The end cap functions as a wire restraint and makes the driver perfectly suited for independent installations. As all SOLOdrives, the 560/A smoothly dims all the way down to dark.

Being a LightShape LED driver, SOLOdrive 560/A lets you replicate the comfortable feeling of how traditional light sources warm in color as they are dimmed.

Features

• LightShape: Dim to Warm

• Hybrid HydraDrive: provides the smoothest flicker-free high-performance dimming to zero for every fixture

• LEDcode2: connects to integrated digital accessories, supports location-based IoT applications and enables wired and wireless lighting control through LEDcode peripheral devices

• NTC interface for robust thermal management

Benefits

• Industry-best dimming performance for your fixture/application

• Wide application area thanks to fully configurable dimming curve

Certifications

• CE Declaration

• EN 61347-1 /-2-13, EN 62384, EN 55015, EN 55022, EN 61000-3-2, EN 61547

• IEC 62386-101 Ed. 2.0, IEC 62386-102 Ed. 2.0, IEC 62386-207 Ed. 1

• UL: Recognized Component (E333135), according to UL1310 and UL8750. US/Canada: Isolated, Class 2 output.

• ENEC and EL certificate

• RCM certificate

• RoHS2 Declaration of conformity

Downloads

SOLOdrive 561A | 50 Watt | 0-10V

SOLOdrive 561/A delivers 50W and is 0-10V compatible. The end cap functions as a wire restraint and makes the driver perfectly suited for independent installations. As all SOLOdrives, the 561/A smoothly dims all the way down to dark.

Being a LightShape LED driver, SOLOdrive 561/A lets you replicate the comfortable feeling of how traditional light sources warm in color as they are dimmed.

Features

• LightShape: Dim to Warm

• Hybrid HydraDrive: provides the smoothest flicker-free high-performance dimming to zero for every fixture

• LEDcode technology: configurable design to work with most constant current LED modules and arrays, while providing a connection point to integrated peripheral controls

• NTC interface for robust thermal management

Benefits

• Industry-best dimming performance for your fixture/application

• Wide application area thanks to fully configurable dimming curve

Certifications

• CE Declaration

• EN 61347-1 / -2-13, EN 62384, EN 55015, EN 55022, EN 61000-3-2, EN 61547, EN 60929 Annex E

• UL: Recognized Component (E333135), according to UL1310 and UL8750. US/Canada: Isolated, Class 2 output.

• ENEC and EL certificate

• RCM certificate

• RoHS2 Declaration of conformity

Downloads
