POWERdrive

Beyond Colour
Go beyond the right colour and smoothest fade with POWERdrive. POWERdrive has multiple constant current outputs, each independently controllable over DALI or DMX/RDM. In standalone mode, you can create your colour or dynamic show without an external controller.

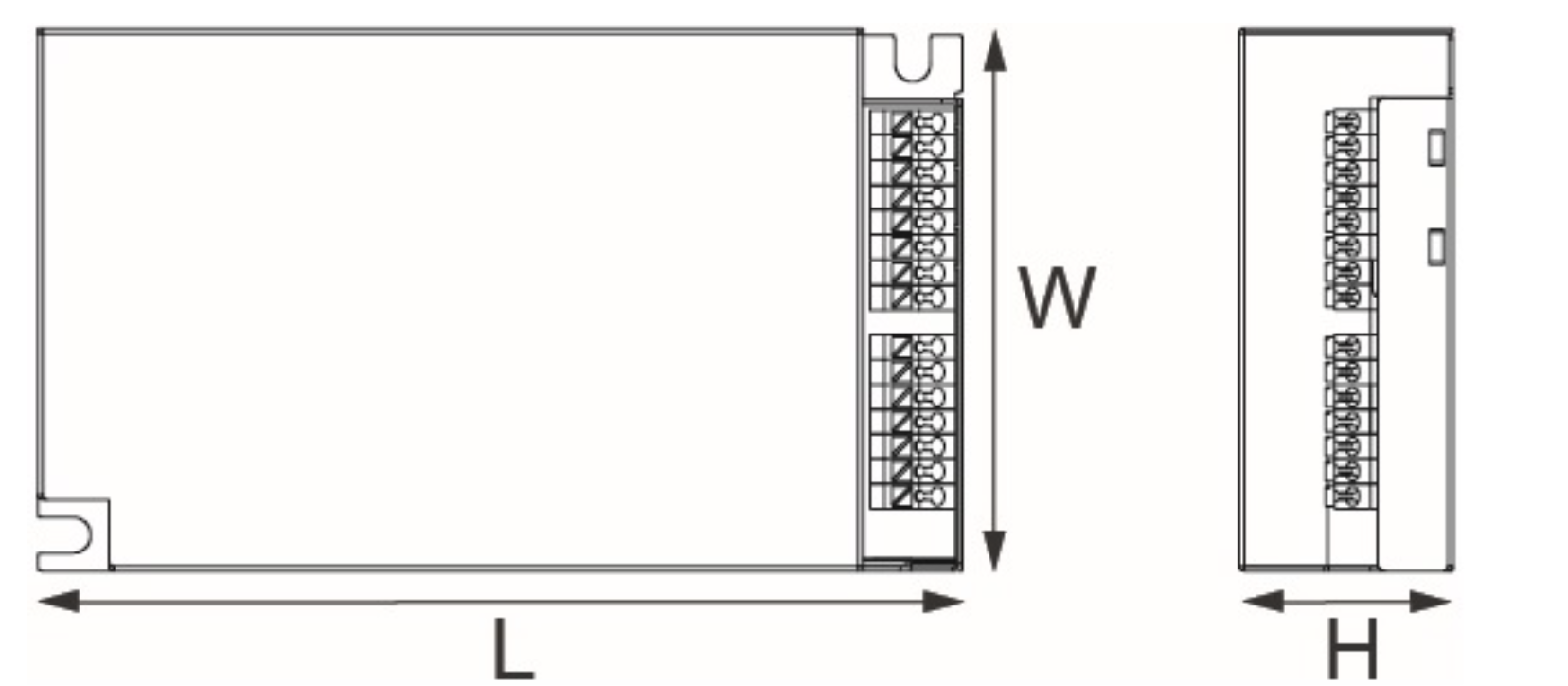

Length (L) 130 mm / 5.12 in
Width (W) 76 mm / 2.99 in
Height (H) 30 mm / 1.18 in

POWERdrive 561S | 50W | DMX

POWERdrive 561/S delivers 50W and is DMX compatible. POWERdrive 561 has four separately controllable LED outputs, which can be used for wide range of full-colour (RGBW), dynamic LED lighting applications.

Features

Hybrid HydraDrive: provides the smoothest flicker-free high-performance dimming to dark for every fixture
Tunable dynamic response
LEDcode technology: configurable design to work with most constant current LED modules and arrays, while providing a connection point to integrated peripheral controls
NTC interface for robust thermal management

Benefits

Industry-best dimming performance for your fixture/application
Dynamic response can be tuned to fit any content - from exceptionally smooth fades in architecture to fast-paced video in entertainment
Compatible with enclosure system DRYverbox 50/S

Certifications

CE Declaration
EN 61347-1/-2-13, EN 62384, EN 55015,EN 55022, EN 61000-3-2, EN 61547
UL: Recognized Component (E333135), according to UL131 0 and UL8750. US/Canada: Isolated, Class 2 output.
ENEC and EL certificate
RoHS2 Declaration of conformity
